Brand Name : XZH TEST
Model Number : XHDP series 50KV
Certification : ISO,CE
Place of Origin : Xi'an, Shaanxi, China
MOQ : 1 unit
Payment Terms : T/T
Supply Ability : 1000 Pieces /Year
Delivery Time : 5-8 days
Packaging Details : wooden case
Model NO. : XHDP series 50KV
Specification : 420*250*340mm
Trademark : XZH TEST
HS Code : 9030339000
Customization : Available
Warranty : Warranty Certificate
XHDP Series 50KV Vlf Hipot Tester Ultra Low Frequency AC High Voltage Generator
30KV, 50KV, 60KV, 80KV Available. Welcome you contact us for more information.
The product combines modern advanced digital variable frequency technology and micro computer control together, therefore, it can realize the full automatic voltage boost, step down, measurement and protection as well as the manual intervention in the process of automatic voltage boost. The full electronic design ensures the small size and light weight. The big LCD screen ensures the clear and visual display, and can display the output wave form. The printer outputs test reports
* Data of current, voltage, wave form can be directly sampled at high voltage side, so the data is real and accurate.
* Over voltage protection: If the output exceeds the set limit of voltage, the instrument will shut-down to protect itself, the actuation time is less than 20ms.
* Over current protection: it is high-low voltage dual protection in the design, the accurate shut-down protection can be made according to the set value at high voltage side; If the current on low voltage side exceeds the rated current, the instrument will take shut-down protection, the actuation time are both less than 20ms.
* A high voltage output protective resistor is provided in the voltage boost body in the design and this eliminates the need of additional protective resistor connected outside.
Model no | Rated Voltage/current | Load Carrying Capacity | Power Fuse Tube | Product Structure and Weight |
VLF-30 | 30kV/20mA (Peak) | 0.1Hz,≤1.1µF | 5A | Controller:4kg Booster: 40kg |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
VLF-50 | 50kV/30mA (Peak) | 0.1Hz,≤1.1µF | 15A | Controller:4kg Booster: 46kg |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF | ||||
VLF-80 | 80kV/30mA (Peak) | 0.1Hz,≤1.1µF | 20A | Controller:4kg Booster Grade 1(30kV):40kg Booster Grade 2(50kV):46kg |
0.05Hz,≤2.2µF | ||||
0.02Hz,≤5.5µF |
![]() |

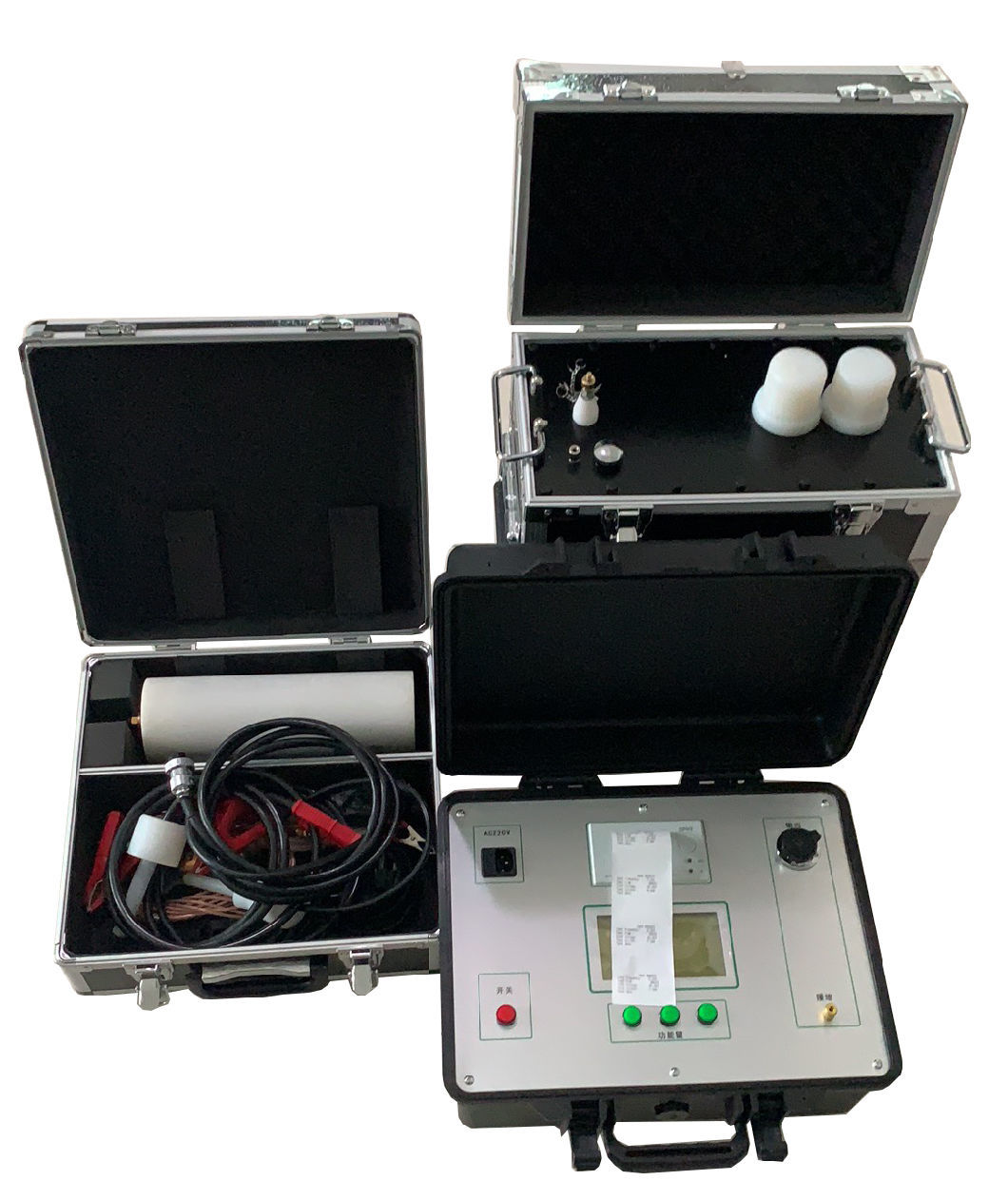

XHDP Series 50KV Vlf Hipot Tester Ultra Low Frequency AC High Voltage Generator Images |
